Magnat

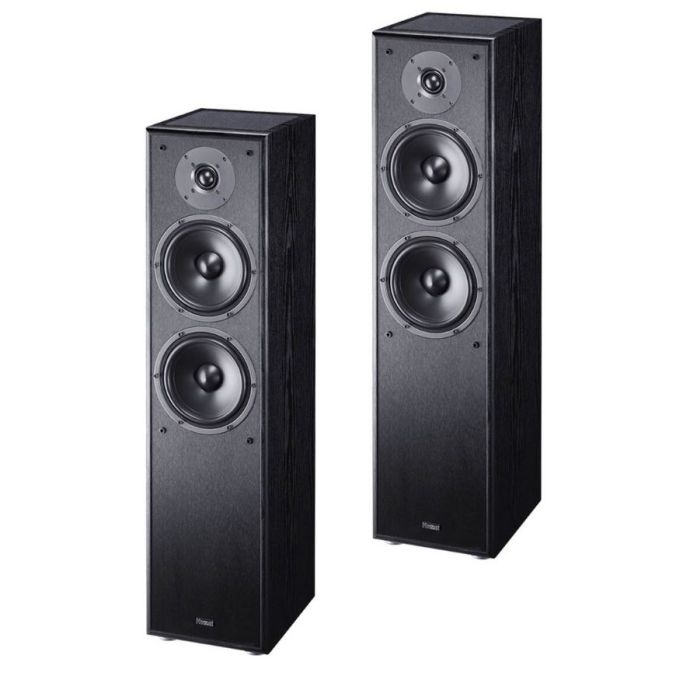

Monitor S80 ATM Floor Speakers 6.5" 160W RMS with Dolby Atmos Black
The Monitor S 80 ATM is one of the technological highlights of the series. This
is of course due to the Dolby Atmos unit built into the top. This coaxial
loudspeaker, specially designed according to Dolby instructions, consists of a
100 mm mid-bass driver and a 20 mm dome tweeter.
Radiating upwards, the Atmos signals reach listeners through the reflection in the ceiling. This eliminates the need for additional speakers. Atmos units have their own connection terminals and connect to the corresponding outputs of an amplifier or receiver.
If you haven't yet, you can first use the S 80 ATM as a classic front speaker and then simply upgrade to Atmos later with new electronics. The "traditional" hi-fi section of the S 80 features two 170 mm woofers, a 110 mm midrange driver and a 28 mm dome tweeter. This is enough for a frequency range from 26 to 38,000 Hz. With the Atmos unit, by the way, it's also an impressive 26 to 28,000 Hz. With a height of 86 cm, the S 80 has perfect dimensions, both acoustically and visually. With its cabinet in black or walnut, there is a suitable version for every living environment. The baffle has a black finish and a removable acoustic fabric front cover completes the look.
Floor speakers with Dolby
Atmos unit for better surround sound
Separate connection terminals for the Atmos unit
Use it as a hi-fi speaker or as a front speaker in your home cinema
DOLBY ATMOS UNIT GUIDE
Coaxial loudspeaker specially
designed according to Atmos specifications.
20 mm tweeter with fabric dome and neodymium movement.
100mm bass-midrange driver with lightweight, specially coated paper cone.
Stable, coated chassis.
CENTER SPEAKER GUIDE
Newly developed 28mm tweeter
with composite fabric dome tweeter, front panel with optimized radiation sound
path and powerful ferrite unit for excellent dynamics
FE-Dynamics woofer and mid-bass drivers with low partial vibration, coated
paper cones, new phase-optimized domes and linear magnet systems.
Class woofer and midrange drivers with robust, coated metal chassis.
CROSSOVER
Phase and amplitude optimized
crossover
Connection terminal with gold-plated and encapsulated screw terminals
Separate connection terminal for the Dolby Atmos unit
SPEAKER CABIN
Robust low resonance cabin
construction using E1-MDF panels
Detachable front cover with acoustic cloth
Airflex door with rounded reflective opening to reduce wind noise
Resonance damping rubber feed
Characteristics:
Operating principle: 2 ½-way
bass reflex floor speakers and integrated Dolby Atmos 2-way coaxial unit
Drivers: 1.1" dome-tweeter, 1 x 4.5" coaxial speaker, 2 x 6.5" woofer-midrange
Power Handling (RMS/Max.): Main Speaker: 160/300 Watt Dolby Atmos Speaker:
40/80 Watt
Sensitivity (2.8V/1m): Main speaker: 90 dB Dolby Atmos speaker: 87 dB
Impedance: Main speaker: 4 ohms Dolby Atmos speaker: 4 ohms
Crossover frequencies Main speaker: 500 Hz, 3,000 Hz Dolby Atmos speaker: 7,000
Recommended amplifier output: Main speaker: 30 – 300 Watt Dolby Atmos speaker:
15 – 80 Watt
Dimensions (WxHxD) 215 x 860 x 270 mm
Weight 13.4 kg
