Monitor

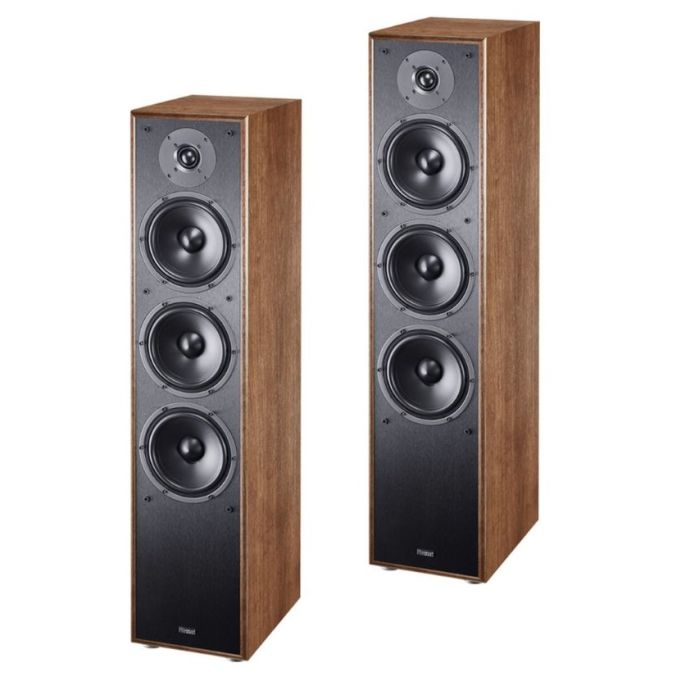

S70 Floor Speakers 6.5" 190W RMS 3 Way Walnut
The Monitor S 70 is the classic floorstanding speaker in the range. With two
170mm woofers and a midrange of the same size, it combines the desire for a
large diaphragm space with a slim appearance.
With an impressive height of 96cm, it is just wider than an A4 sheet at 21.5cm. At its top, the 28 mm dome tweeter, which most speakers in the S-Line series can boast. Assembling with identical drivers ensures you get consistent sound everywhere, even in complex multi-channel systems.
By the way, the two basses guarantee low frequencies and the frequency range ranges from 19 to 38,000 Hz. With cabin color variants in black or walnut, the S 70 also has the right model for every style. Charcoal-colored baffle and removable acoustic fabric front cover ensure uniform appearance.
3-way floor speaker with bass
reflex
Encapsulated and gold plated connection terminals
High quality wood trim with charcoal baffle
Newly developed 28mm tweeter with composite fabric dome, front panel with
optimized emission sound guide and powerful ferrite unit for excellent dynamics
Use it as a hi-fi speaker or as a front speaker in a home cinema
CHASSIS
Newly developed 28mm tweeter
with composite fabric dome tweeter, front panel with optimized radiation sound
path and powerful ferrite unit for excellent dynamics
FE-Dynamics woofer and bass-midrange driver with low partial vibration, coated
paper cones, new phase-optimized caps and linear magnet systems.
Class woofer and midrange-woofer drivers with robust, coated metal chassis
CROSSOVER
Phase and amplitude optimized
crossover
Connection terminal with gold-plated and encapsulated screw terminals
SPEAKER CABIN
Robust low resonance cabin
construction using E1-MDF panels
Detachable front cover with acoustic cloth
Airflex door with rounded reflective opening to reduce wind noise
Resonance damping rubber feed
Characteristics:
Drivers: 2 x 6.5" woofer 1.1"
dome-tweeter 1 x 6.5" midrange
Power Handling (RMS/Max.): 190 / 380 Watt Sensitivity (2.8V/1m): 91 dB
Resistance: 4 – 8 Ohm
Frequency response: 19 – 38000 Hz
Crossover frequencies: 400 Hz, 2,900 Hz
Recommended amplifier output: 30 – 380 Watts
Dimensions (WxHxD): 215 x 960 x 310 mm
Weight: 15 kg
Monitor
S70 Floor Speakers 6.5" 190W RMS 3 Way Walnut
The Monitor S 70 is the classic floorstanding speaker in the range. With two
170mm woofers and a midrange of the same size, it combines the desire for a
large diaphragm space with a slim appearance.
With an impressive height of 96cm, it is just wider than an A4 sheet at 21.5cm. At its top, the 28 mm dome tweeter, which most speakers in the S-Line series can boast. Assembling with identical drivers ensures you get consistent sound everywhere, even in complex multi-channel systems.
By the way, the two basses guarantee low frequencies and the frequency range ranges from 19 to 38,000 Hz. With cabin color variants in black or walnut, the S 70 also has the right model for every style. Charcoal-colored baffle and removable acoustic fabric front cover ensure uniform appearance.
3-way floor speaker with bass
reflex
Encapsulated and gold plated connection terminals
High quality wood trim with charcoal baffle
Newly developed 28mm tweeter with composite fabric dome, front panel with
optimized emission sound guide and powerful ferrite unit for excellent dynamics
Use it as a hi-fi speaker or as a front speaker in a home cinema
CHASSIS
Newly developed 28mm tweeter
with composite fabric dome tweeter, front panel with optimized radiation sound
path and powerful ferrite unit for excellent dynamics
FE-Dynamics woofer and bass-midrange driver with low partial vibration, coated
paper cones, new phase-optimized caps and linear magnet systems.
Class woofer and midrange-woofer drivers with robust, coated metal chassis
CROSSOVER
Phase and amplitude optimized
crossover
Connection terminal with gold-plated and encapsulated screw terminals
SPEAKER CABIN
Robust low resonance cabin
construction using E1-MDF panels
Detachable front cover with acoustic cloth
Airflex door with rounded reflective opening to reduce wind noise
Resonance damping rubber feed
Characteristics:
Drivers: 2 x 6.5" woofer 1.1"
dome-tweeter 1 x 6.5" midrange
Power Handling (RMS/Max.): 190 / 380 Watt Sensitivity (2.8V/1m): 91 dB
Resistance: 4 – 8 Ohm
Frequency response: 19 – 38000 Hz
Crossover frequencies: 400 Hz, 2,900 Hz
Recommended amplifier output: 30 – 380 Watts
Dimensions (WxHxD): 215 x 960 x 310 mm
Weight: 15 kg
